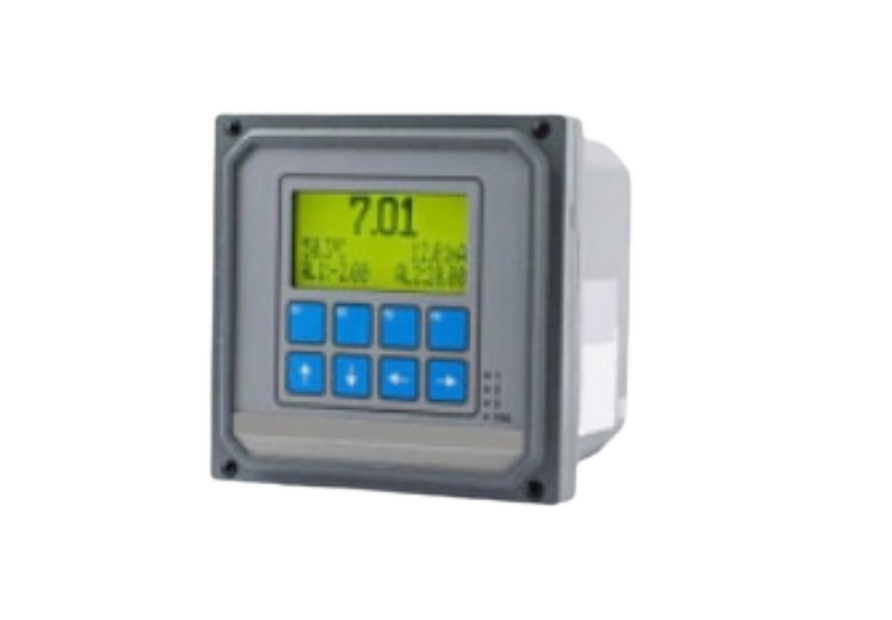

PH /ORP Analyser

pH / ORP Analysers are engineered for continuous and precise monitoring of the acidity (pH) or oxidation-reduction potential (ORP) in a wide range of industrial applications. These analyzers help ensure optimal chemical conditions in processes involving water treatment, effluent monitoring, food & beverage, pharmaceuticals, and chemical processing. The analyzers are designed for robust field performance, with advanced signal conditioning and auto-temperature compensation for consistent results in aggressive or variable process environments.

Features

  • PH/ORP Indicator / Transmitter / Controller
  • 2-Line, 16-character Back-lit Display
  • Measuring range pH : 0-14pH
  • Accuracy : ±0.01pH
  • Resolution : 0.01pH
  • Measuring range ORP : ±2000mV
  • Accuracy : ±2mV
  • Resolution : 1mV
  • Output: 4-20mA with Relay Output/ RS485/ HART
  • Mounting: Panel / Field
  • Temperature Compensation as Optional
  • MOC : Glass, ss316L
