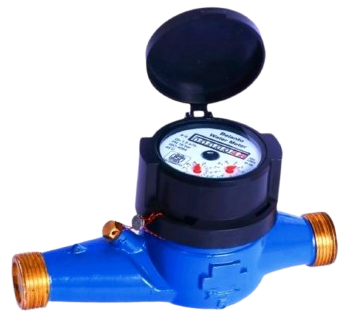

Multi – Jet Water Flow Meter
The Multi-Jet Flow Meter is a highly reliable and efficient solution designed for accurate water flow measurement in residential, commercial, and small industrial applications. Using multiple water jets to rotate an internal impeller, this meter ensures exceptional accuracy, particularly at low flow rates, making it an excellent choice for domestic water metering and utility billing systems.
Engineered with a compact and tamper-resistant design, the Multi-Jet Meter is easy to install in confined spaces, such as inside wall-mounted boxes or narrow pipelines. Constructed from robust, corrosion-resistant materials, it offers long-term durability and stable performance even under varying pressure conditions. Its mechanical register or optional remote reading capabilities make it adaptable for modern water management systems.
Ideal for apartment complexes, commercial buildings, gated communities, and small industries, this flow meter provides precise consumption data, helping utilities and property managers implement efficient water usage and billing practices. Choose our Multi-Jet Flow Meter for cost-effective, accurate, and long-lasting water measurement.
Features:
- Protection : IP 68
- Pressure Rating : 10 bar
- Operating Temperature : 50 °C
- Internal mechanism : Dry type
- Accuracy : ±2 % at max flow,±5 % at min flow
- Marking : CE Marking
- Certification : ISO 4064
- Flow Rate:
15mm : Min-30L/h – Max: 3 m3/hr
20 mm: Min:50 L/h – Max:5 m3/hr
25 mm: Min :70 L/h – Max:7 m3/hr
Why Choose Us ?
- Leading manufacturer in India with a strong reputation for quality.
- Best price guaranteed with no compromise on performance or durability.
- High accuracy even in low or fluctuating flow rate conditions.
- Durable and corrosion-resistant materials ensure long-lasting operation.
- Ready stock available for quick and efficient delivery across India.
- Certified and tested as per IS and ISO standards.
- Easy to install and maintain with a compact design.
- Dedicated customer support for product guidance and after-sales service.
Product Details:
| Brand | RLT Solutions |
| Application | Domestic, Commercial, Light Industrial |
| Flow Measurement | Volumetric, Mechanical |
| Available Sizes | 15 mm, 20 mm, 25 mm, 32 mm, 40 mm |
| Accuracy Class | Class B / Class C |
| Flow Range | For 15 mm: ~30 L/h to 3,000 L/h |
| Maximum Pressure | 16 bar |
| Temperature Range | Cold: up to 45 °C Optional hot water model: up to 90 °C |
| Body Material | Brass / Polymer Composite / Cast Iron |
| Design Highlights | Low starting flow, low pressure drop |
| Country of Origin | Made in India |
