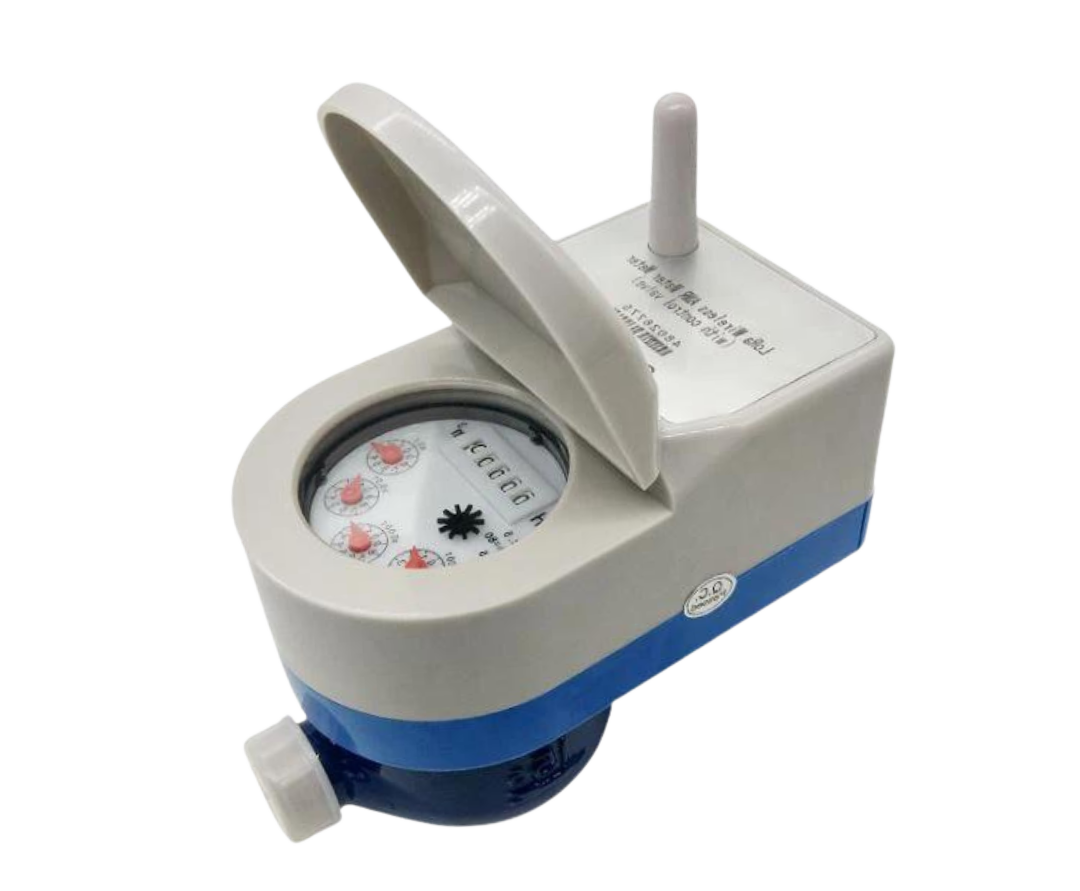

AMR COMPATIBLE MULTI-JET METER

The AMR Compatible Multi-Jet Water Meter combines the time-tested reliability of multi-jet flow measurement with modern remote data communication capabilities. Designed for residential, commercial, and institutional water metering applications, this meter allows utility providers to read consumption data remotely without manual intervention.

The meter functions based on the multi-jet principle, ensuring high accuracy even at low flows. Integrated with a pulse or digital output, it supports seamless connectivity with AMR systems or IoT platforms for real-time monitoring, billing automation, and leak detection.

Features

  • Line Size: 15mm – 25mm
  • Class: B
  • Temperature: 0.1 – 40°C COLD WATER METER,                                0.1 – 100°C HOT WATER METER
  • Material: Brass
  • RF modulation: LoRa Technology
  • Accuracy: ±3% at max flow , ±5%min flow
  • Transmitted power: 20dBm as most
  • Up link communication interface: RF mode
  • The wireless communication distance : ≥300m (open area)
  • Down link communication interfaces: M-BUS bus or RF for wireless collector
  • The maximum transmission distance up to 1000m
  • Global communications: GPRS wireless mobile network
