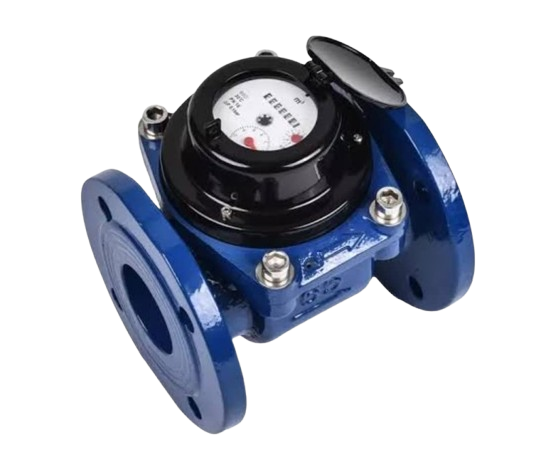

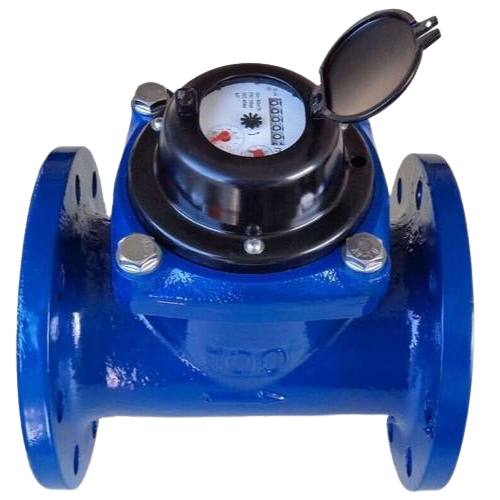

Woltman Water Flow Meter – Telangana
We are a leading manufacturer and supplier of Woltman water flow meters in Telangana, renowned for delivering exceptional accuracy, durability, and cost-effective performance. Designed for large pipeline systems, these meters are ideally suited for industrial plants, municipal water supply networks, agricultural irrigation, and bulk water distribution across the state.
Each Woltman-type flow meter features a horizontal turbine mechanism that ensures precise measurement of high flow rates with minimal pressure loss. The advanced internal design guarantees long-term stability and measurement accuracy, even under fluctuating water flow conditions. Constructed from premium materials such as cast iron, stainless steel, and brass, these meters offer superior resistance to corrosion and wear, ensuring reliable operation in both clean and raw water applications.
Available in various sizes and configurations, our flow meters include options for mechanical or electronic displays, pulse output, and remote reading compatibility. Each unit is rigorously tested under strict quality standards to meet both national and international specifications, delivering unmatched efficiency, accuracy, and user convenience.
Trusted across major cities such as Hyderabad, Warangal, Nizamabad, Karimnagar, Khammam, Nalgonda, and Mahbubnagar, our Woltman water flow meters are known for accurate readings, easy maintenance, and long service life. Choose our reliable and cost-effective flow measurement solutions for superior performance, dependable support, and sustainable water management across Telangana.
Technical Specifications:
- Type: Woltman (Turbine Type) Water Flow Meter – Designed for high-accuracy measurement of water flow in large pipeline systems.
- Measuring Principle: Velocity-based measurement using a turbine rotor mounted horizontally, ensuring precise readings even at high flow rates with minimal pressure loss.
- Pipe Diameter Range: Available from DN50 to DN1000 mm, suitable for medium to large-scale water distribution applications.
- Flow Range: Designed to handle Qmin to Qmax flow rates in compliance with ISO 4064 / IS 779 standards for volumetric accuracy.
-
Accuracy Class:
-
Class B / C (as per ISO 4064)
-
±2% for normal flow range, ±3% for transitional flow range.
-
- Working Pressure:
Up to 16 bar (PN16) — customizable for specific site requirements. -
Operating Temperature:
-
Water: 0°C to 50°C for cold water meters
-
Up to 90°C for hot water models
-
-
Display Options:
-
Mechanical Register (Analog Counter)
-
Optional Electronic Display with Pulse Output / RS485 Communication for remote data transmission.
-
-
Protection Class: IP68 (with sealed electronic unit) — suitable for outdoor and underground installations.
-
Compliance & Standards: Conforms to ISO 4064 / IS 779, ensuring accuracy, reliability, and long-term performance under Indian climatic conditions.
Key Benefits of Woltman Flow Meter:
- High Measurement Accuracy: Provides precise and consistent flow readings even under fluctuating water pressure and variable flow rates, ensuring reliable water management.
- Low Pressure Loss: Engineered with a horizontal turbine design that allows water to flow smoothly, minimizing energy loss across the pipeline.
- Durable and Long-Lasting: Constructed from robust materials such as cast iron, stainless steel, or ductile iron, offering excellent corrosion resistance for long-term operation in Tamil Nadu’s varying water conditions.
- Suitable for Large Pipelines: Ideal for municipal water supply systems, irrigation networks, and industrial applications that require accurate measurement of high flow volumes.
- Easy Maintenance and Servicing: Modular design with a removable measuring unit makes inspection, cleaning, and replacement simple without disconnecting the main body from the pipeline.
- Wide Range of Sizes and Configurations: Available from DN50 to DN1000 mm, with mechanical or electronic displays, pulse output, and remote reading options for smart water monitoring.
Features
- Application: industrial applications
- Line sizes : 50mm to 500mm
- Max. Working pressure : 16 bar
- Max Working Temp : 60 °C
- Accuracy : ± 2 % at Maximum flow
- Signal Output : Pulse (Optional)
- Standard : Confirming to ISO 4064
- Mechanism : IP68 Protected Dry type
Why Choose Us ?
- Leading manufacturer of Woltmann flow meters in India
- Best price guarantee with high-quality performance
- Made in India, designed for Indian industrial conditions
- Suitable for industrial, irrigation, and municipal water systems
- Durable construction with minimal maintenance
- Reliable and accurate measurement of high flow rates
- Fast delivery with dedicated technical support
Product Details:
| Application Media | Water |
| Model Name/Number | RLT-WFM-100 |
| Brand | RLT Solutions |
| Connection Type | Flanged |
| Temperature Range | 0°C to 60°C |
| Accuracy | ±2% |
| Display | Analog or Digital (Optional) |
| Country of Origin | Made in India |
