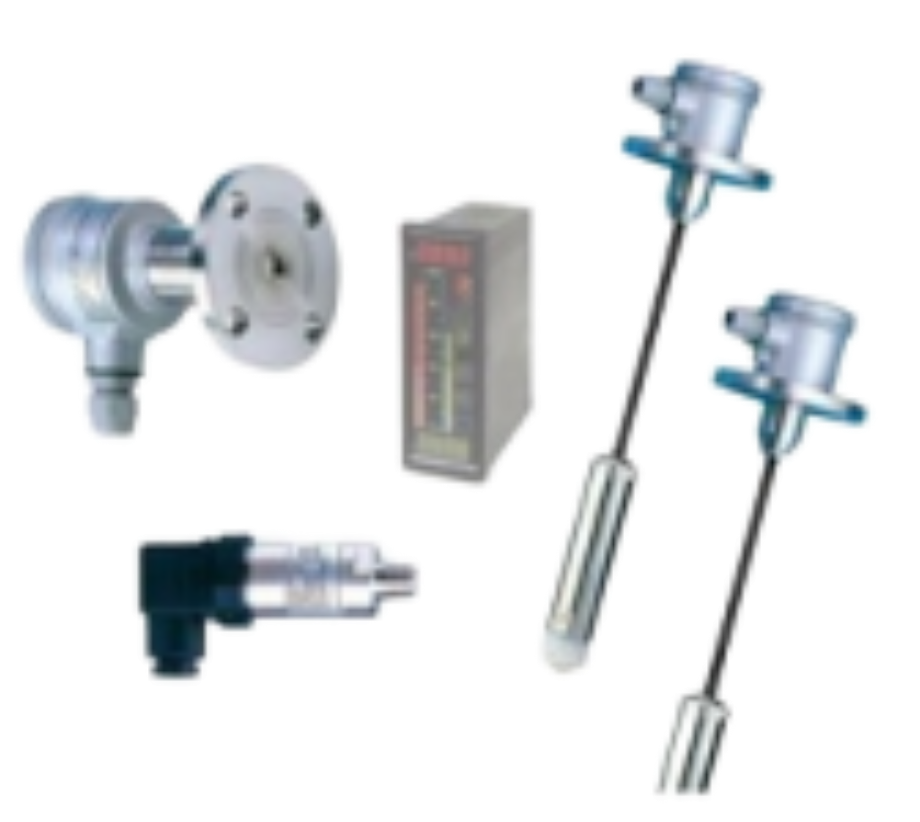

Hydrostatic Level Transmitter
We are a leading manufacturer in India, offering high-quality Hydrostatic Level Transmitters at the best price, designed for accurate and reliable level measurement in water, wastewater, and liquid storage applications. Trusted for performance and durability, our transmitters are ideal for both industrial and municipal use.
These transmitters operate by sensing the hydrostatic pressure exerted by the liquid column above the sensor and converting it into an electrical signal proportional to the liquid level. This allows for continuous, real-time monitoring, even in harsh or submerged conditions.
Engineered for versatility, our transmitters are suitable for submersible as well as externally mounted configurations. They are widely used in tanks, wells, boreholes, reservoirs, lift stations, and effluent systems, where accurate level measurement is critical. Featuring rugged construction, easy installation, and compatibility with PLC, SCADA, and automation systems, our hydrostatic level transmitters provide long-term reliability and low maintenance, making them the preferred choice for modern liquid level monitoring.
Our Hydrostatic Level Transmitters are developed using advanced sensing technology to ensure high measurement accuracy, stable output, and dependable performance under varying operating conditions. Designed with corrosion-resistant materials and superior sealing protection, they provide reliable operation even in demanding environments involving moisture, chemicals, and continuous submersion.
With a strong focus on quality and customer satisfaction, every transmitter undergoes rigorous testing and quality assurance procedures to meet industrial standards and application requirements. Supported by our experienced technical team and reliable after-sales service, we provide customized level measurement solutions that help industries improve operational efficiency, reduce maintenance costs, and maintain accurate process control across critical applications.
Product Details:
| Brand | RLT Solutions |
| Model Number | RLT-HLT-500 |
| Measuring Principle | Hydrostatic Pressure |
| Measurement Range | 0–3 m / 0–10 m / 0–30 m |
| Output Signal | 4–20 mA / 0–10 V / RS485 |
| Power Supply | 12–36 V DC |
| Accuracy | ±0.25% of Full Scale |
| Sensor Type | Submersible / External Mount |
| Cable Length | 5 m / 10 m / 20 m |
| Sensor Material | SS316L / PVC / PTFE coated |
| Temperature Range | -10°C to +80°C |
| Protection Rating | IP68 / IP65 |
| Applications | Tanks, Wells, Boreholes, Effluent, Reservoirs |
| Country of Origin | India |
Features:
Contact type Level Transmitter
- Application : Weak Acids, Alkaline liquid, Waste Water, Bore well Application etc.,
- Type Pressure Based Level Measurement (Flange, screw Type)etc.,
- Temperature: Compensation In-Built
- Housing Material: Aluminium
- Measuring Range: Upto 4/5/10/20/50/100 meter
- Op Press : 0.4 Bar/10 Bar, Temp : 80 °C / 150 °C
- Output: 4-20 mA (2-wire / 4-wire)
Why Choose Us ?
- Leading Indian Manufacturer with expertise in industrial liquid level sensing
- Best Price + High Quality – Reliable performance at cost-effective rates
- High Accuracy & Stability – Consistent level readings in dynamic environments
- Submersible & External Models – Adaptable to various field conditions
- Easy Installation & Maintenance – Simplifies field operations
- Chemical & Corrosion Resistance – Designed for harsh and wet conditions
- SCADA/PLC Compatible – Seamless integration with industrial automation
-
Made in India – Backed by local support and fast delivery
